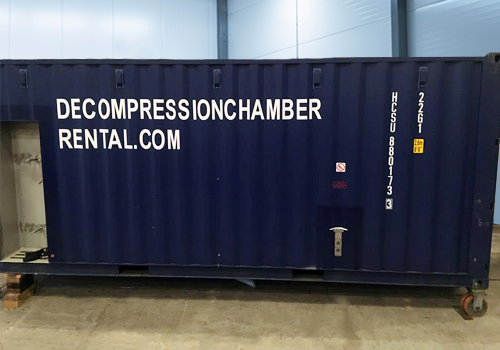

Containerraised diving decompression chamber (DDC). Twin Lock 1500 mm.
![](sitesnap/bin/25.08)

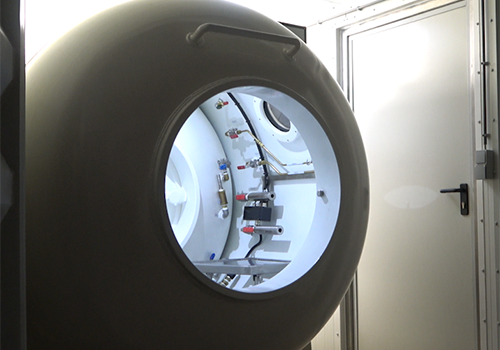

Container is 20 foot long. Double door. Including a walk indoor.
![](sitesnap/bin/35.08)

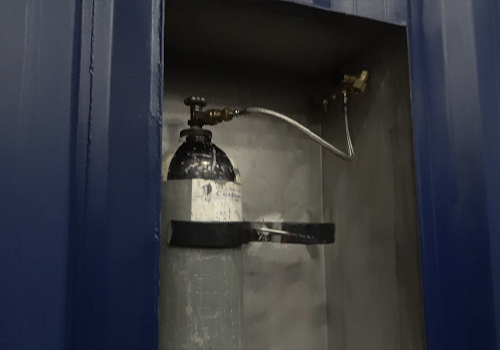

O2 niche welded in the container to place 2x 50 liter bottles. O2 200 bar each.
![](sitesnap/bin/94.svg)
![](sitesnap/bin/44.08)

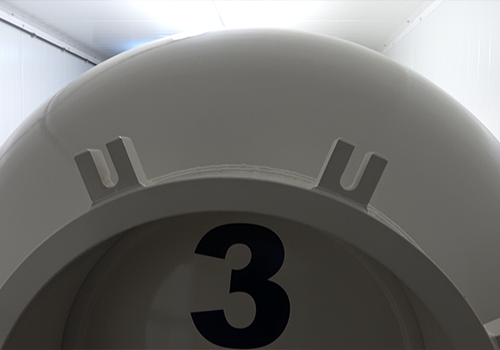

Weight of the chamber is 3530 kg.
![](sitesnap/bin/32.08)

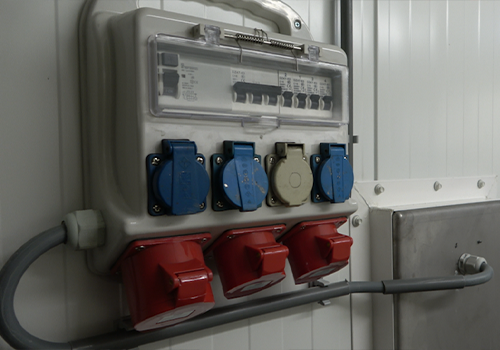

Box welded in for plug in power supply cable 380 volts 32 amps 5 pins.
![](sitesnap/bin/45.08)

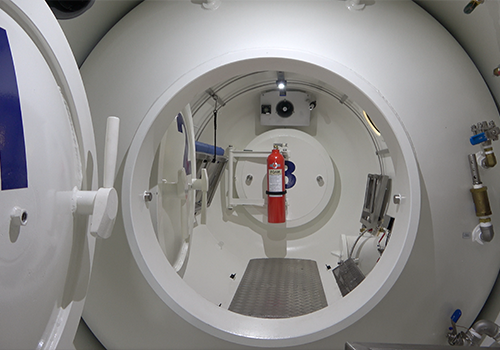

Total length of the chamber is 4375 mill.
![](sitesnap/bin/95.svg)
![](sitesnap/bin/24.08)

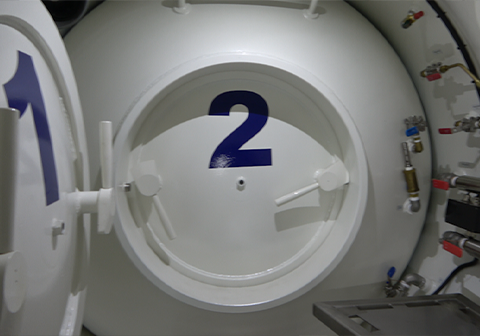

Volume Entrance Lock (EL) is 1.9 cubic meters. 2x oxygen bibsmask connection.
![](sitesnap/bin/37.08)

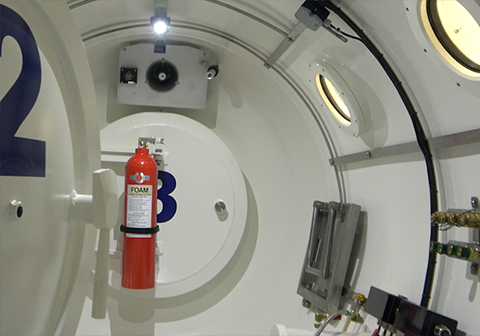

Volume Main Chamber (MC) is 5.2 cubic meters. 4x oxygen bibsmask connection.
![](sitesnap/bin/29.08)

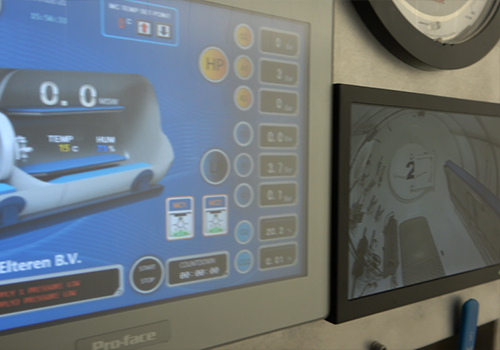

MC and EL both provided with camera.
![](sitesnap/bin/42.08)

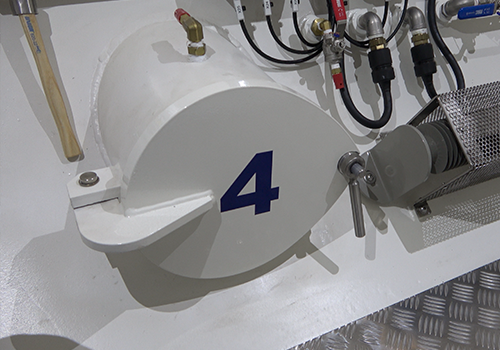

A total of 3 windows and a medical lock.
![](sitesnap/bin/33.08)

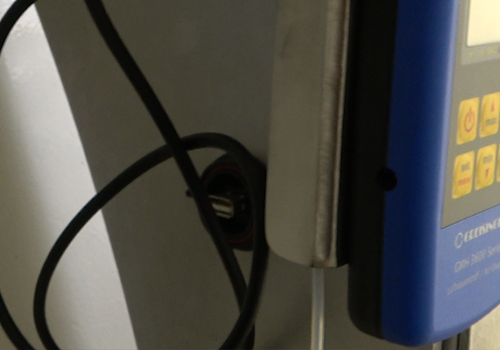

USB port to record every move or step in the chamber.
![](sitesnap/bin/103.svg)
![](sitesnap/bin/30.08)

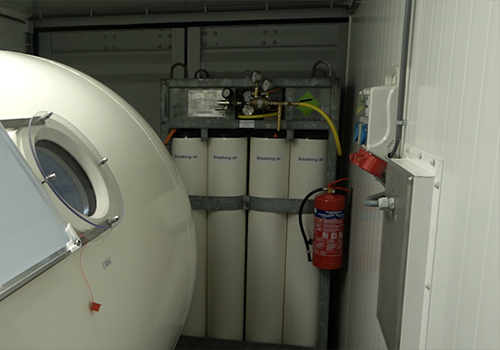

Airbank mounted in the container with 12 bottles of 50 liters and 200 bar.
![](sitesnap/bin/101.08)

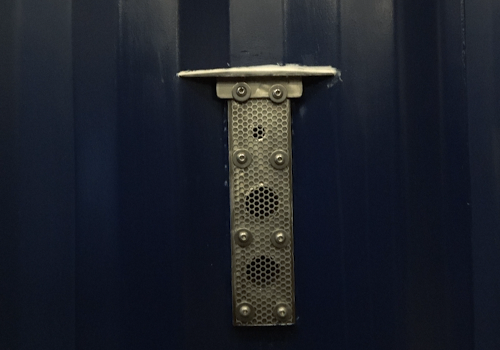

External O2 outlet.
![](sitesnap/bin/31.08)

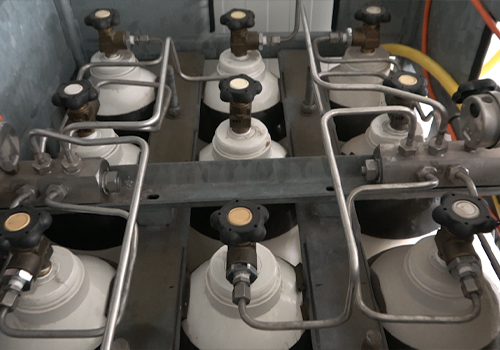

Airbank splitted in six bottles line one primary air and six bottles line two secundary air.
![](sitesnap/bin/102.png)

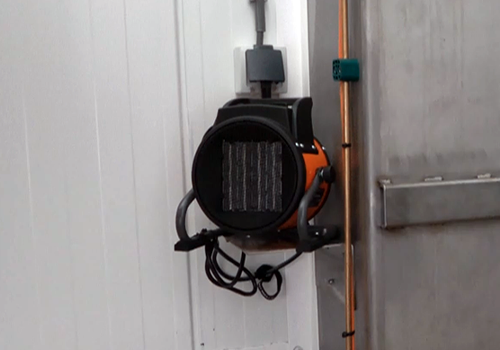

Heather in MC available.
